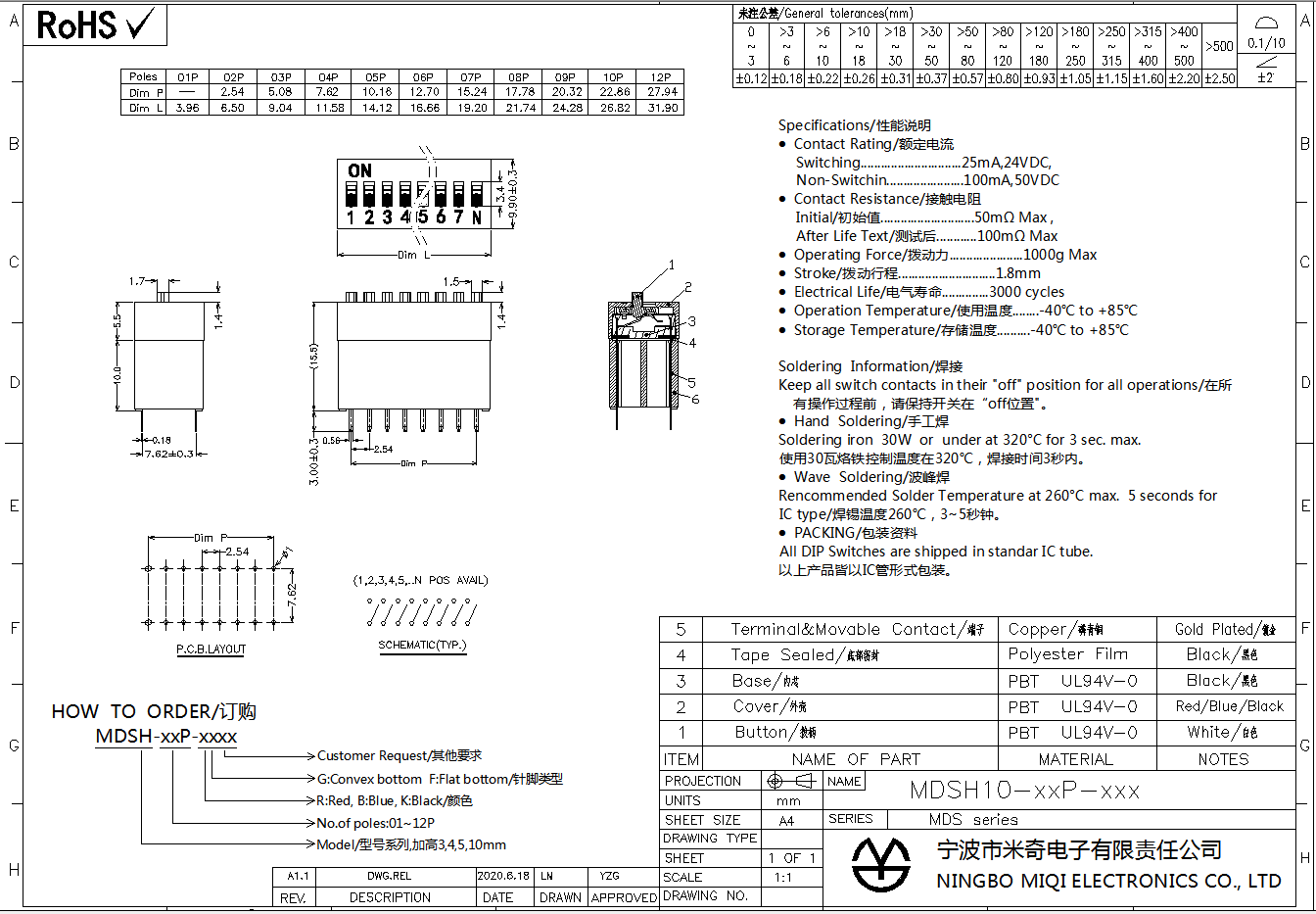

Materials

· Button:PBT UL 94V-0

· Cover:PBT UL 94V-0 Thermoplastic:Blue,Red,Black

· Base:PBT UL 94V-0

· Tape Sealed:Epoxy resin

· Terminal Movable Contact:Copper Alloy with
  Gold Plated

Specifications

· Contact Rating
   Switching:25mA,24VDC, Non-Switchin:100mA,50VDC

· Contact Resistance
   Initial:50mΩ Max , After Life Text:100mΩ Max

· Operating Force......................1000g Max

· Stroke.............................1.8mm

· Electrical Life..............3000 cycles

· Operation Temperature........-40℃ to +85℃

· Storage Temperature..........-40℃ to +85℃

· Soldering Information
   Keep all switch contacts in their off position for all operations.

· Hand Soldering
   Soldering iron 30W or under at 320°C for 3 sec. max.

· Wave Soldering

   Rencommended Solder Temperature at 260°C max. 5 seconds for IC type.

PACKING

· All DIP Switches are shipped in standar IC tube.
