Specifications/性能说明

· Contact Rating/额定电流

    Switching..............................25mA,24VDC

    Non-Switchin.......................100mA,50VDC

· Contact Resistance/接触电阻

    Initial/初始值............................50mΩ Max

    After Life Text/测试后............100mΩ Max

· Operating Force/拨动力......................1200g Max

· Stroke/拨动行程.............................0.9mm

· Electrical Life/电气寿命..............3000 cycles

· Operation Temperature/使用温度........-40℃ to +85℃

· Storage Temperature/存储温度..........-40℃ to +85℃

Soldering  Information/焊接

Keep all switch contacts in their "off" position for all operations/在所有操作过程前，请保持开关在“off位置"。

· Reflow Soldering/回流焊

 Reflow zone 240°C  for 20 seconds.(attached drawing for reference)

  回流焊高温区240°C，20秒。

· Wave  Soldering/波峰焊

Rencommended Solder Temperature at 260°C max.  5 seconds for

IC type/焊锡温度260℃，3~5秒钟。

· PACKING/包装资料

PACKING/包装资料

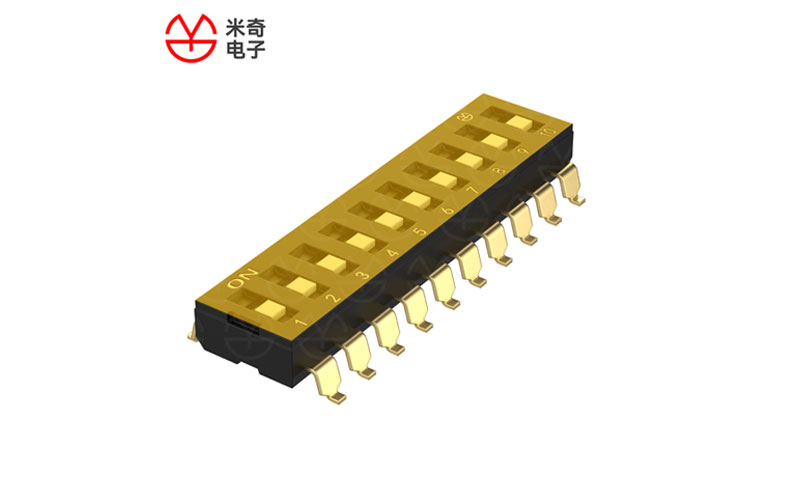

· All DIP Switches are shipped in standar IC tube or ReeL.以上产品皆以IC管形式或卷带包装。
